Why Do Alumina Ceramic Tubes Fail, and How Can You Prevent It?

Alumina tube reliability is often compromised by microcracks, improper selection, or mishandling—identify main causes, apply proven solutions, and extend tube lifespan with data-driven practices.

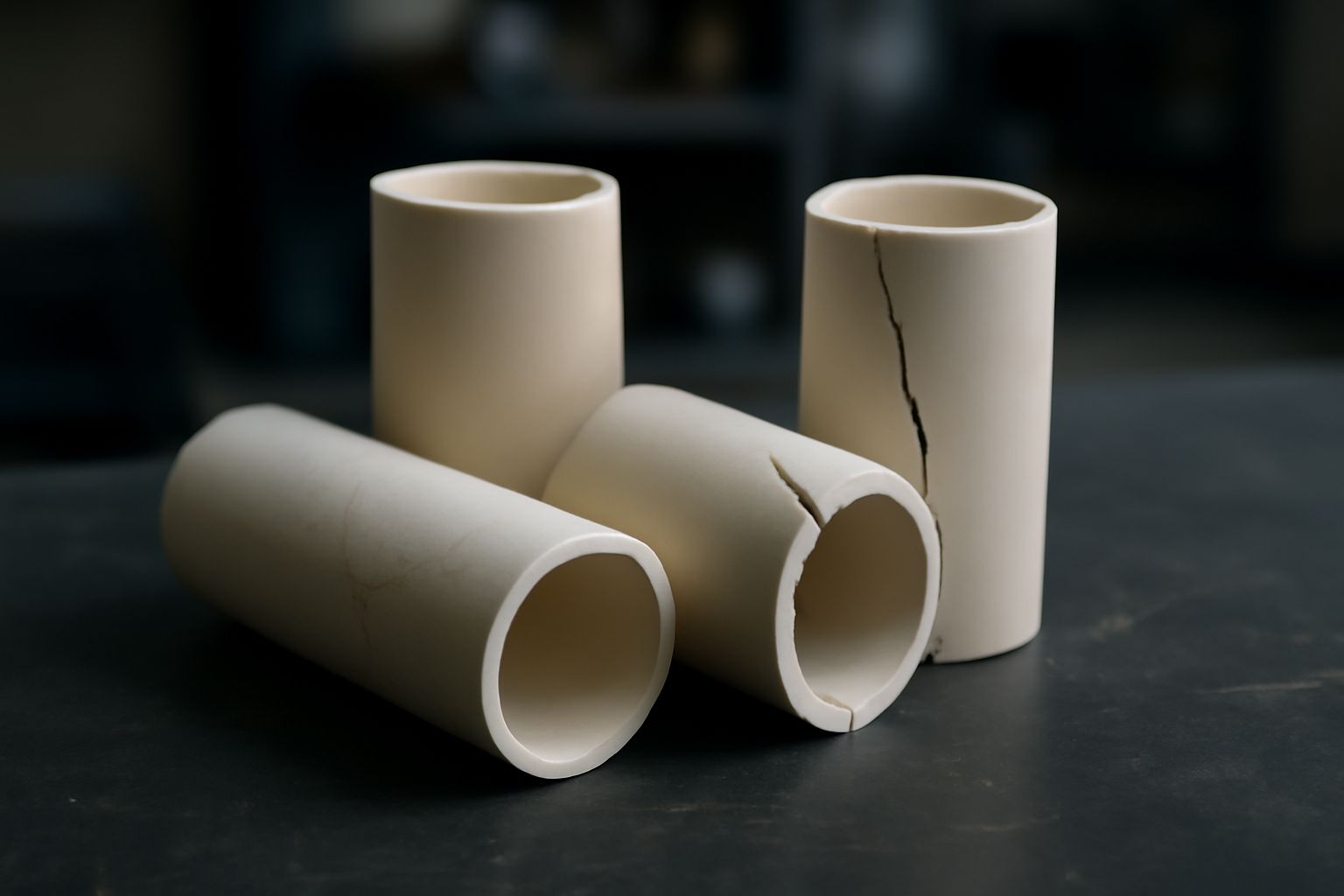

What are the most common causes of microcracks or fractures?

The leading causes of microcracks or fractures in alumina ceramic tubes are thermal shock, rapid temperature changes, mechanical overload, and chemical attack. These mechanisms initiate stress concentrations, resulting in visible or microscopic cracks that compromise tube reliability and performance.

Drawing from our industrial experience, sudden heating or cooling during startup and shutdown cycles almost always accelerates crack initiation. For example, temperature gradients above 200°C/min frequently cause failures, while exposure to aggressive acids (like HCl above 100°C) erodes the surface and nucleates microcracking. Routine inspection often reveals microcracks before catastrophic fracture, enabling preemptive replacement and reduced downtime.

For more on ceramic failure mechanisms, read Ceramic Engineering on Wikipedia.

How does improper material selection lead to premature tube failure?

Choosing the wrong alumina grade or purity triggers early failures, as the tube may lack the necessary chemical resistance, mechanical integrity, or thermal performance for the application’s demands. Accurate material matching with process requirements is crucial for maximum lifecycle.

In our recent case with a German laboratory OEM, opting for 95% alumina for a 1300°C thermal cycling application resulted in tube distortion and frequent microcracking. After transitioning to 99.7% purity, lifespan improved threefold—from 2 months to 6+ months per tube. This underscores how aligning grades with temperature, environment, and mechanical loads is essential for reliability.

What storage and handling mistakes shorten alumina tube lifespan?

Improper storage and careless handling dramatically reduce the lifespan of alumina ceramic tubes. Chips, scratches, and microcracks often originate from stacking, unprotected contact, or uncontrolled environments.

We have seen instances where tubes placed directly on concrete floors or metal shelves suffered edge damage within weeks. Similarly, transporting tubes without protective sleeves led to surface flaws that, though microscopic, caused early fracture during thermal cycling. Controlled storage with padded racks and handling with nitrile gloves have measurably doubled the usable life of stocked tubes in our warehouse setting.

Learn more about advanced ceramics handling in this best practices article by Precision Ceramics.

When should you transition to higher purity or alternate designs?

Upgrading to a higher purity alumina or alternate tube design is necessary when repeated failures occur under existing process conditions, particularly at elevated temperatures or in highly corrosive or high-voltage environments.

Based on analysis of operational failures across U.S. and European end-users from late 2023 to early 2024, most transition decisions were driven by failure rates exceeding 10% per batch, or when equipment downtime costs surpassed $5,000 per incident. Switching from 96% to 99.7% alumina, or moving to a double-walled or composite tube, significantly reduced both frequency and severity of in-service breakage. It’s essential to reassess design when application parameters (like max temperature, mechanical load, or electrical insulation needs) are upgraded.

In summary, eliminating alumina tube failures starts with precise material selection, careful handling, and timely upgrades to optimized designs. Proactive management yields substantial lifecycle savings.
